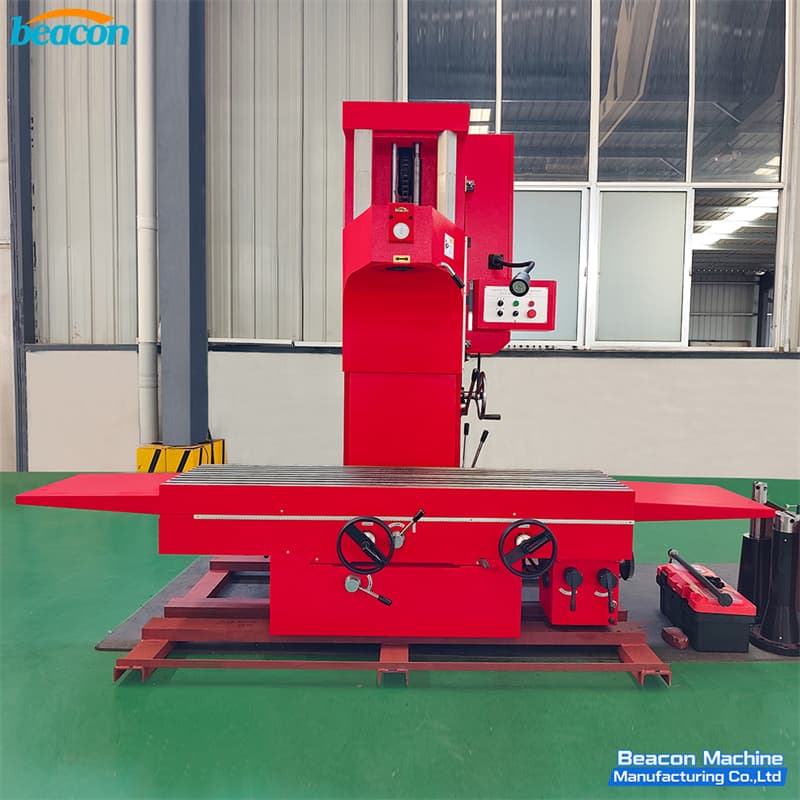

T8018D Cylinder Boring Machine | Precision Engine Boring Machine

Product Description

T8018D is a vertical boring solution developed for reconditioning worn engine cylinders in passenger cars, trucks and agricultural engines.


This cylinder boring machine adopts a heavy-duty column structure and fine feed control to achieve smooth and uniform cutting results.


As a reliable precision engine boring machine, it ensures excellent cylindricity and surface quality after boring operations.

Its simple mechanical layout and durable components make it an efficient engine rebore machine for small and medium engine rebuilding facilities.

Scene picture

precision cylinder boring machine

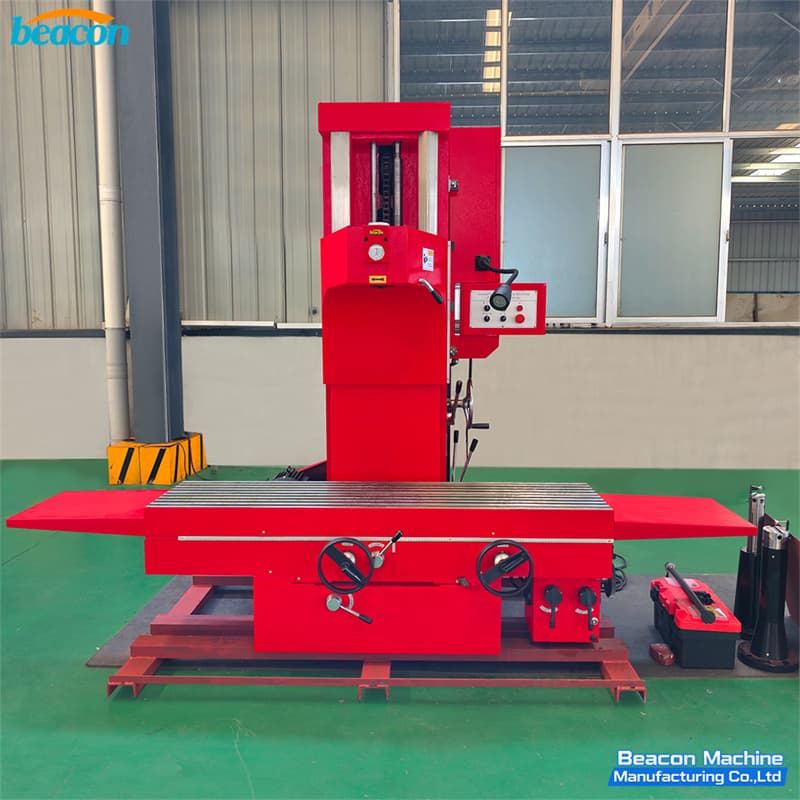

engine rebore machine for sale

Detailed picture

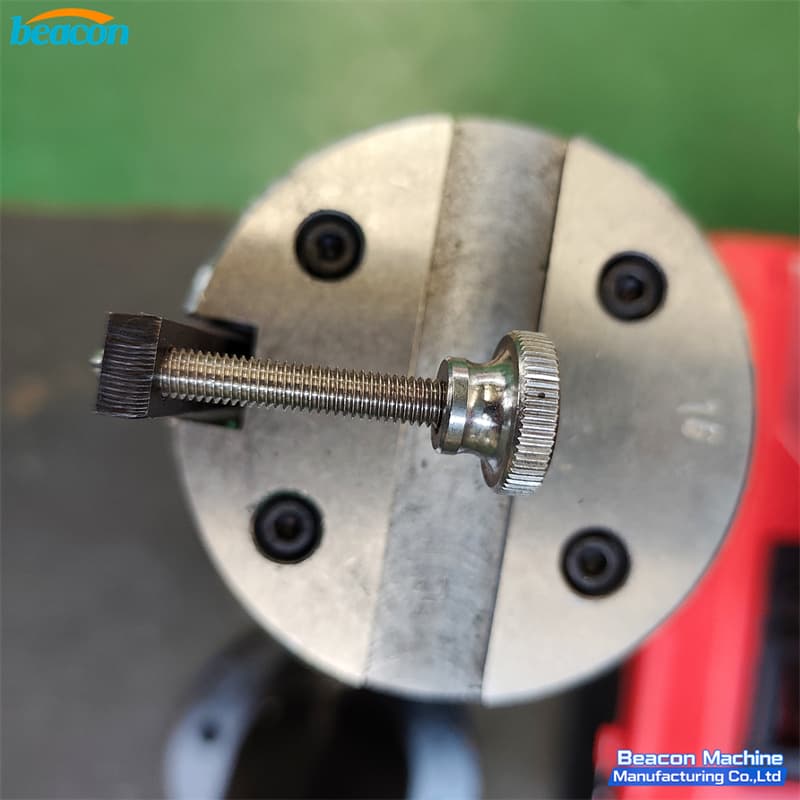

small engine boring machine

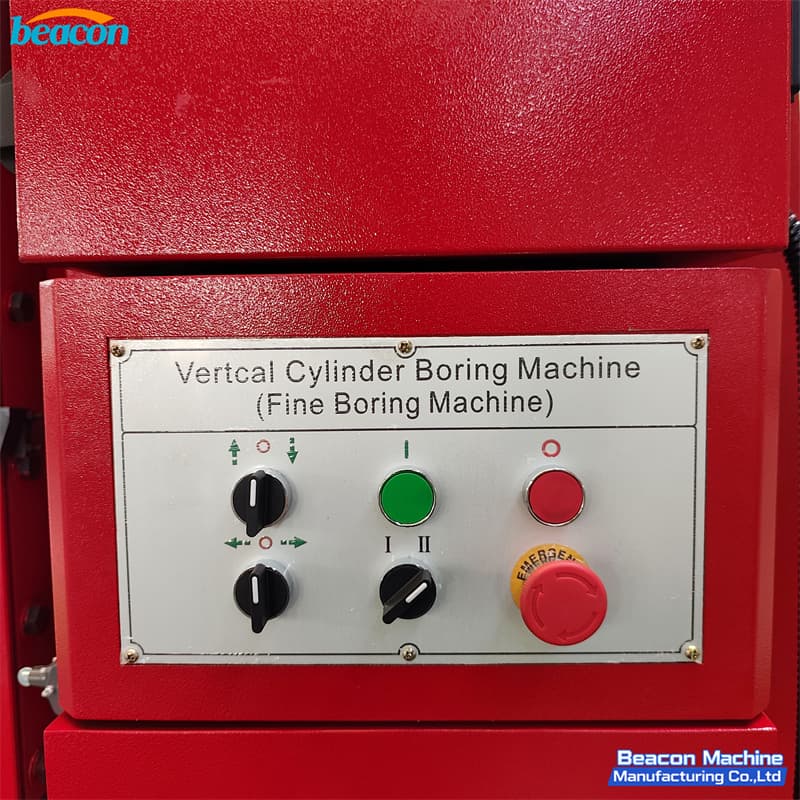

comtrol panel

vertical engine boring equipment

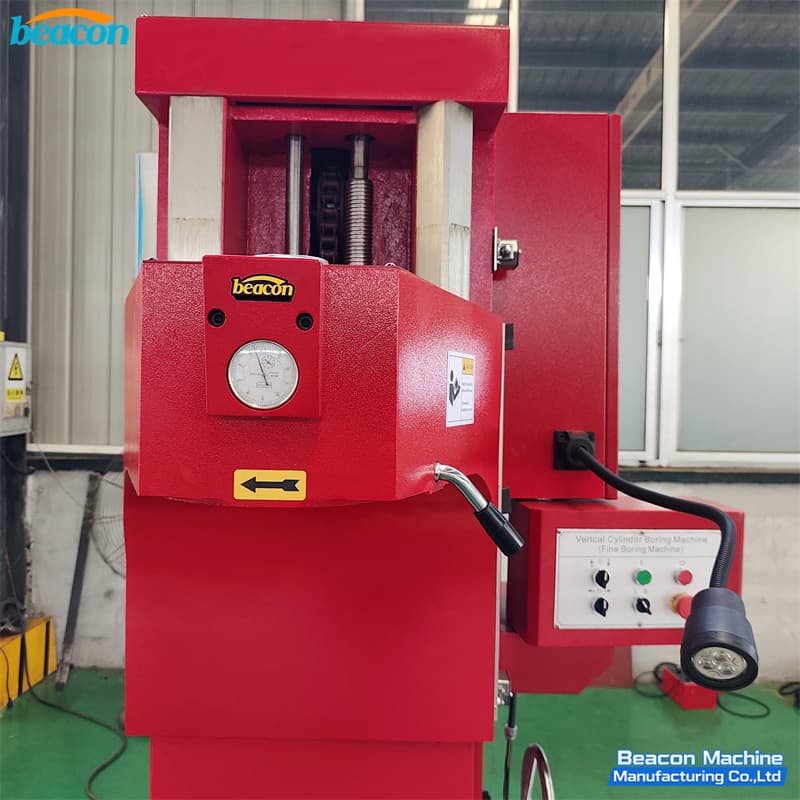

automotive cylinder rebore machine

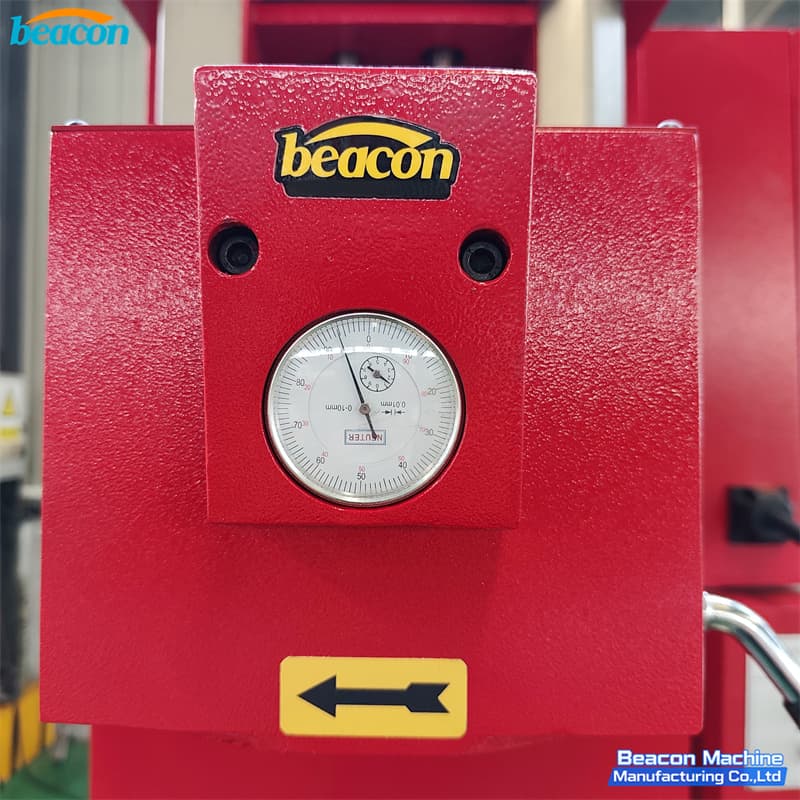

Pressure Gauge

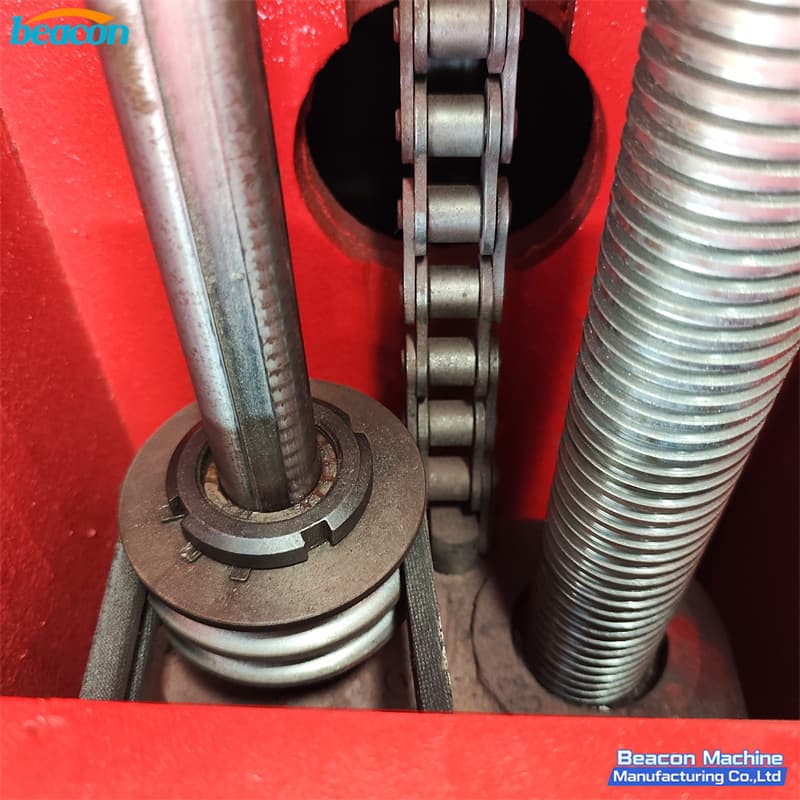

engine cylinder machining machine

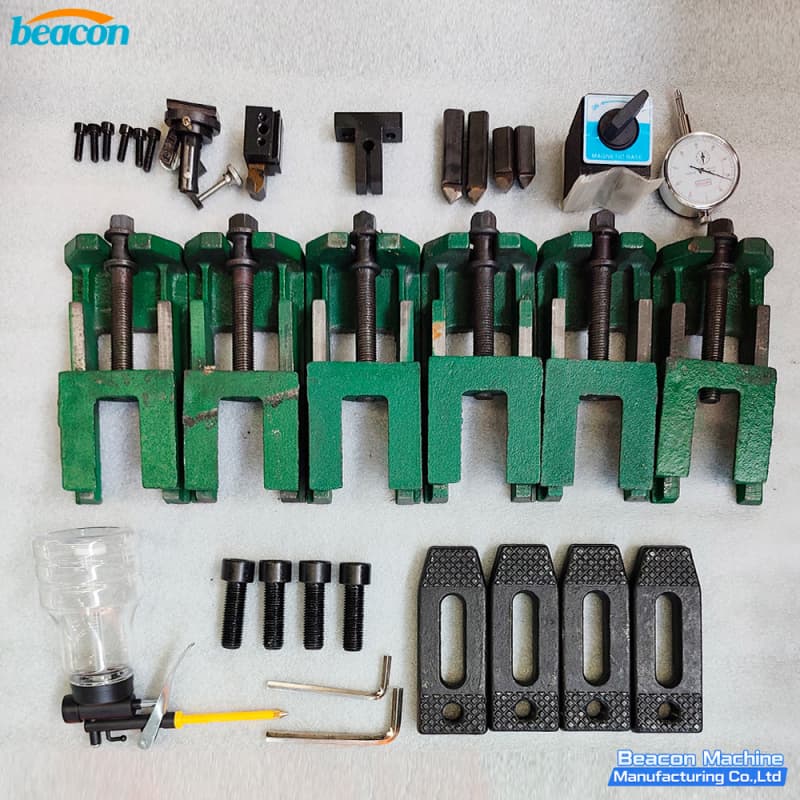

accessories


Parámetros

ItemSpecification
Machine typeVertical engine cylinder boring machine
Boring diameter range35-200 mm
Max boring depth420 mm
Spindle speed range120-1400 rpm
Automatic feed range0.03-0.18 mm/rev
Column travel380 mm
Worktable travel (X/Y)260 mm / 280 mm
Main motor power3.5 kW
Coolant system power0.12 kW
Power supply380V / 50Hz
Boring bar diameter25 mm
Machining accuracy0.01 mm
Net weight1350 kg
Overall size1650*950*2300 mm
